MK1 Compatibility

MK1 COMPATIBILITY

 This page contains a little more information regarding component compatibility for my MK1 computer case. If you’re looking for the instruction manual or the open-source files, click either of the two buttons below.

Clearances:

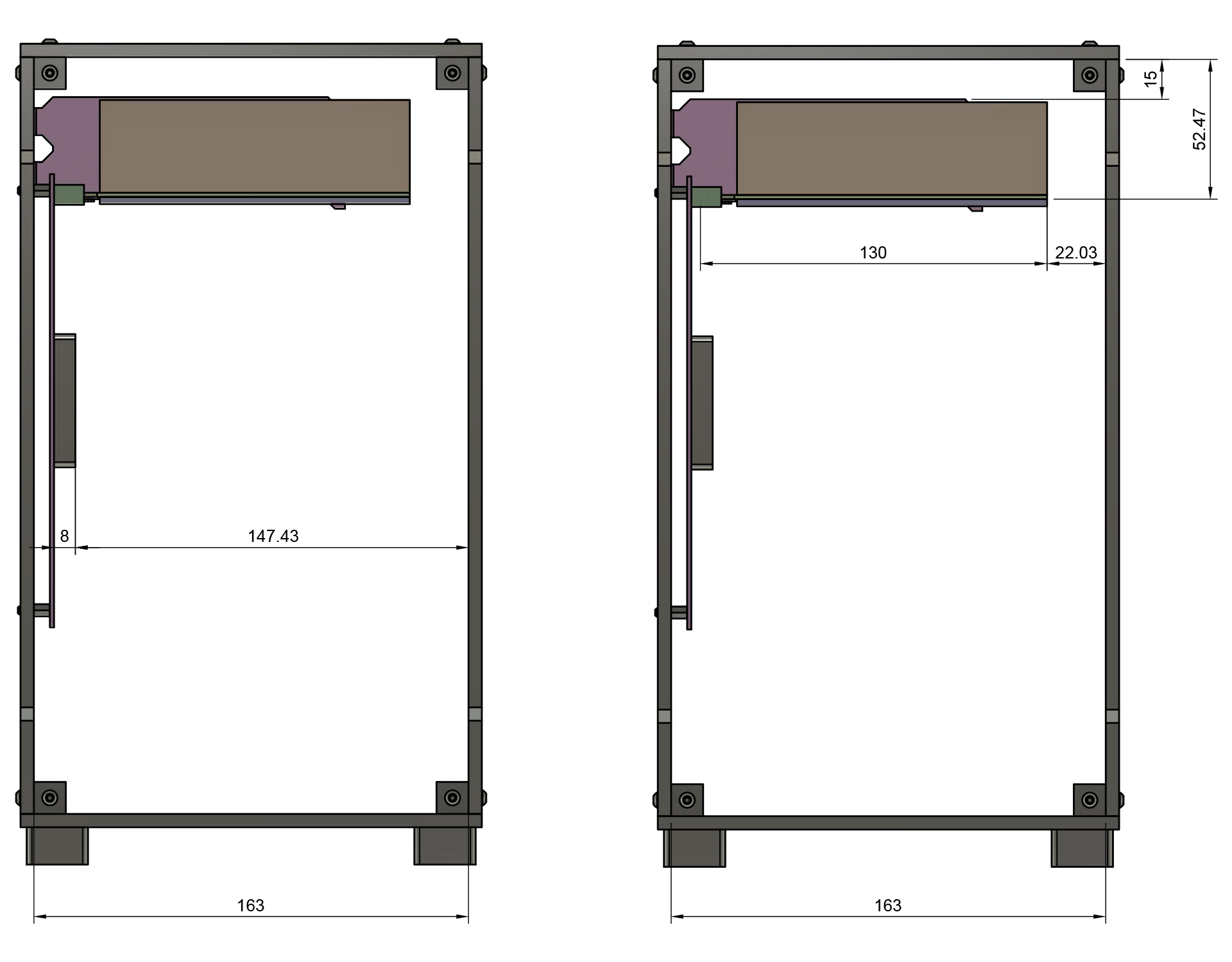

Below are two diagrams that show various clearances in the case in mm.

CPU Cooler Clearance.png

Fans:

Fan placement is a little tricky in MK1. Here’s a diagram and list of the possible combinations supported out of the box.

  • 120mm intake fan (25mm thick): 2x80mm exhaust (25mm thick) or 1x92mm exhaust (25mm thick)

  • 140mm intake fan (25mm thick): 2x80mm exhaust (25mm thick) or 1x92mm exhaust (15mm thick)

Fan Placement.png
